料号 2000 8200 |
Part No. 2000 8200 |
||
|
|
||
应用 |
钻, 铣, 磨, 雕刻机床（自动换刀） |
Applications |
Drilling, Milling, Grinding, Engraving |

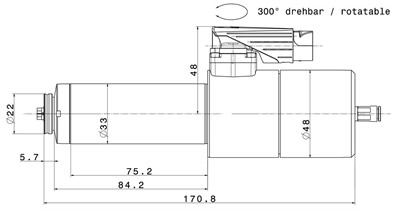

外壳夹装尺寸 |
33 mm |
Clamping diameter |
33 mm |
马达类型 |
无刷同步高速电机 |
Motor system |
Brushless DC motor (BLDC) |
转速范围 |
5,000 – 100,000 min-1 |
Speed range |
5,000 - 100,000 rpm |
额定电压 |
51 V |
Voltage |
51 V |
电流 |
最大 8 A |
Current |
max. 8 A |
扭矩t |
最大 5.2 Ncm |
Torque |
max. 5.2 Ncm |
频率 |
83 – 1,666 Hz |
Frequency |
83 - 1,666 Hz |

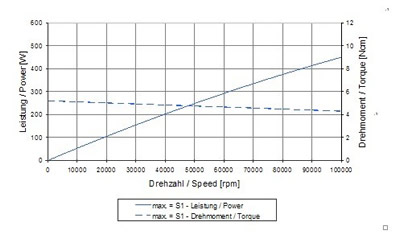

功率 |
最大. 450 W |
Output power |
max. 450 W |
重量 |
1.0 kg |
Weight |
1.0 kg |
轴承 |
3 x 陶瓷轴承, 油脂润滑 |
Bearing system |
3 x Hybrid, lifetime lubrication |
保护等级 |
IP 55/57 (压缩气+密封挡片可作选项) |
Protection category |
IP 55/57 (with sealing air + optional accessory: sealing cap 2001 2617) |
电机保护 |
KTY |
Motor protection |
KTY |
安装位置 |
|
Working position |
|
负载方向 |
轴向l + 径向 |
Load direction |
axial + radial |
锥面跳动 |
通常 1 µm |
Run-out (taper) |
typ. 1 µm |
刀具夹持范围 |
最大 4.0 mm |
Chuck clamping range |
up to 4.0 mm |
换刀方式 |
压缩气 5 - 6 bar (管径 Ø 4 mm) |
Tool change |
pneum. 5 - 6 bar (hose Ø 4 mm) |
冷却系统 |
外夹具冷却 |
Cooling system |
Cooling via clamping bracket |
防水防尘措施 |
压缩气27 Nl/min (管径外 Ø 4 mm) |
Protected against dirt |
Sealing air 27 Nl/min |
外壳材料 |
不锈钢 |
Housing material |
Stainless steel |
推荐变频器 |
e@syDrive® 4425*, 4426, TV 4506 |
Inverter recommendation |
e@syDrive® 4425*, 4426, TV 4506 |
重要特征 |
利用 6 bar压缩气清洁锥面 |
Highlights |
Taper cleaning at 6 bar |
*输出功率有所降低 |
保留修改权 |
*reduced output power |
Subject to change without notice |
