Rotors in aluminium, copper, NdFeB with steel - or CFK- reinforcement for highest security and extreme quiet running.
6极异步电机定转子 | Asynchronous Motor Elements 6-pole Version

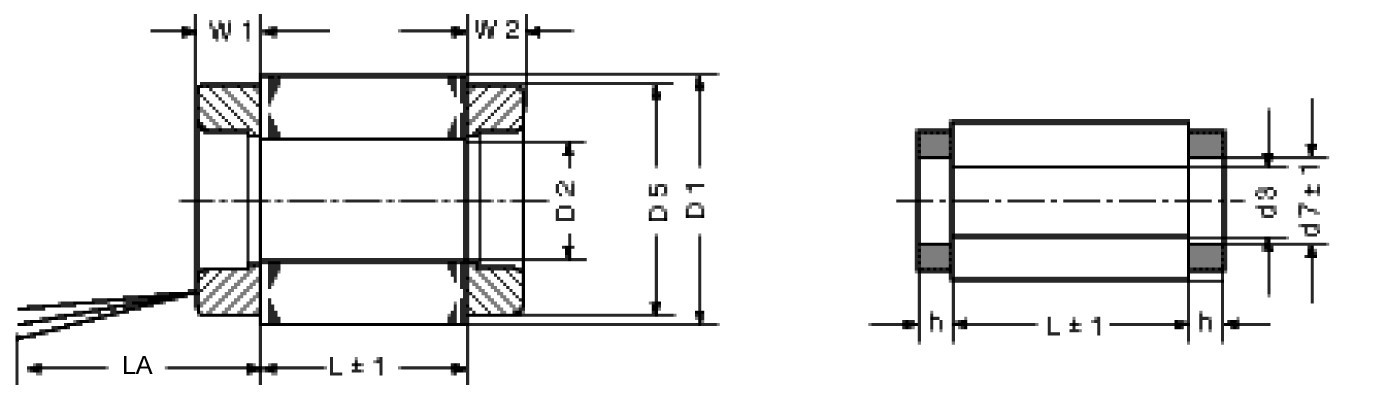

机械尺寸 |
||||||||
Mechanical Dimensions |
||||||||
Type／规格 |
D1 |
D2 |
D5max |
W1max |
W2max |
d3 |
d7 |
h |
EV 120 |
120,0 |
80,0 |
115,0 |
30,0 |
25,0 |
25,0 |
47,0 |
8,5 |
EV 135 |
135,0 |
95,0 |
130,0 |
32,0 |
30,0 |
30,0 |
70,0 |
16,0 |
EV 140 |
140,0 |
95,0 |
135,0 |
34,0 |
30,0 |
40,0 |
61,0 |
16,0 |
EV 150 |
150,0 |
103,0 |
145,0 |
35,0 |
32,0 |
71,0 |
71,0 |
10,0 |
EV 165 |
165,0 |
110,0 |
160,0 |
38,0 |
35,0 |
40,0 |
80,0 |
10,0 |
EV 170 |
170,0 |
115,0 |
165,0 |
40,0 |
35,0 |
40,0 |
73,0 |
12,0 |
EV 180 |
180,0 |
125,0 |
175,0 |
42,0 |
37,0 |
80,0 |
80,0 |
11,0 |
EV 200 |
200,0 |
135,0 |
190,0 |
43,0 |
38,0 |
60,0 |
90,0 |
14,0 |
EV 220 |
220,0 |
150,0 |
210,0 |
44,0 |
39,0 |
90,0 |
103,0 |
12,0 |
EV 240 |
240,0 |
165,0 |
230,0 |
45,0 |
40,0 |
100,0 |
120,0 |
10,0 |
EV 270 |
270,0 |
180,0 |
260,0 |
48,0 |
43,0 |
110,0 |
110,0 |
18,0 |
EV 300 |
300,0 |
200,0 |
290,0 |
50,0 |
45,0 |
120,0 |
123,0 |
8,0 |
注释: 所以尺寸以 mm为单位，其余尺寸另外询问。 LA ＝定子连接线长度 |
Explanation: All dimensions in metric mm, more and |
规格实例 |
||||||||
Examples |
||||||||
Type／规格 |
长度 | Length |
Pab (kW) |
Pab (kW) |
Pab (kW) |
Pab (kW) |
Pab (kW) |
Pab (kW) |
Pab (kW) |
50 Hz |
150 Hz |
300 Hz |
750 Hz |
1 500 Hz |
2 250 Hz |
3 000 Hz |
||
1 000 rpm |
3 000 rpm |
6 000 rpm |
16 000 rpm |
30 000 rpm |
45 000 rpm |
60 000 rpm |
||
EV 80 |
-30.6 |
|
|
0,42 |
1,10 |
2,00 |
2,90 |
3,20 |
|
- 90.6 |
|
|
1,40 |
3,50 |
6,10 |
8,80 |
10,00 |
EV 90 |
- 30.6 |
|
|
0,57 |
1,55 |
2,90 |
4,00 |
|
|
- 60.6 |
|
|
1,30 |
3,40 |
5,40 |
8,80 |
|
|
- 90.6 |
|
|
1,90 |
4,80 |
9,10 |
12,60 |
|
EV 106 |
- 50.6 |
|
|
1,90 |
4,90 |
9,30 |
|
|
|
- 100.6 |
|
|
3,90 |
9,80 |
18,30 |
|
|
EV 120 |
- 80.6 |
0,80 |
2,40 |
4,80 |
|
|
|
|
|
- 100.6 |
1,00 |
3,00 |
6,00 |
|
|
|
|
|
- 150.6 |
1,50 |
4,50 |
9,00 |
|
|
|
|
EV 135 |
- 80.6 |
1,10 |
3,30 |
6,60 |
|
|
|
|
|
- 100.6 |
1,40 |
4,20 |
8,40 |
|
|
|
|
|
- 150.6 |
2,10 |
6,30 |
12,60 |
|
|
|
|
EV 140 |
- 80.6 |
1,20 |
3,60 |
7,20 |
|
|
|
|
|
- 100.6 |
1,50 |
4,50 |
9,00 |
|
|
|
|
|
- 150.6 |
2,30 |
6,90 |
13,80 |
|
|
|
|
EV 150 |
- 100.6 |
2,40 |
7,20 |
14,40 |
|
|
|
|
|
- 150.6 |
3,60 |
10,80 |
21,60 |
|
|
|
|
|
- 200.6 |
4,80 |
14,60 |
29,20 |
|
|
|
|
Type／规格 |
长度 | Length |
Pab (kW) |
Pab (kW) |
Pab (kW) |
Pab (kW) |
Pab (kW) |
Pab (kW) |
Pab (kW) |
50 Hz |
150 Hz |
300 Hz |
750 Hz |
1 500 Hz |
2 250 Hz |
3 000 Hz |
||
1 000 rpm |
3 000 rpm |
6 000 rpm |
16 000 rpm |
30 000 rpm |
45 000 rpm |
60 000 rpm |
||
EV 165 |
- 100.6 |
3,00 |
9,00 |
18,00 |
|
|
|
|
|
- 150.6 |
4,50 |
13,00 |
26,00 |
|
|
|
|
|
- 200.6 |
6,00 |
18,00 |
36,00 |
|
|
|
|
EV 170 |
- 100.6 |
4,00 |
12,00 |
24,00 |
|
|
|
|
|
- 150.6 |
6,00 |
18,00 |
36,00 |
|
|
|
|
|
- 200.6 |
8,00 |
24,00 |
48,00 |
|
|
|
|
EV 180 |
- 100.6 |
5,00 |
15,00 |
30,00 |
|
|
|
|
|
- 150.6 |
8,00 |
24,00 |
48,00 |
|
|
|
|
|
- 200.6 |
10,00 |
30,00 |
60,00 |
|
|
|
|
EV 200 |
- 100.6 |
6,00 |
18,00 |
36,00 |
|
|
|
|
|
- 200.6 |
12,00 |
36,00 |
72,00 |
|
|
|
|
|
- 250.6 |
15,00 |
45,00 |
90,00 |
|
|
|
|
EV 220 |
- 100.6 |
8,00 |
24,00 |
48,00 |
|
|
|
|
|
- 200.6 |
16,00 |
48,00 |
96,00 |
|
|
|
|
|
- 250.6 |
20,00 |
60,00 |
120,00 |
|
|
|
|
EV 240 |
- 150.6 |
14,00 |
42,00 |
84,00 |
|
|
|
|
|
- 200.6 |
19,00 |
56,00 |
112,00 |
|
|
|
|
|
- 300.6 |
28,00 |
84,00 |
168,00 |
|
|
|
|
EV 270 |
- 150.6 |
20,00 |
60,00 |
120,00 |
|
|
|
|
|
- 200.6 |
27,00 |
81,00 |
162,00 |
|
|
|
|
|
- 300.6 |
40,00 |
120,00 |
240,00 |
|
|
|
|
EV 300 |
- 200.6 |
36,00 |
108,00 |
216,00 |
|
|
|
|
|
- 250.6 |
45,00 |
135,00 |
270,00 |
|
|
|
|
|
- 300.6 |
54,00 |
162,00 |
324,00 |
|
|
|
|
实际计算的依据: - 正弦波形的电压和电流 - 导磁材料的轴心 - 水冷却 (功率值只是参考值，通过线圈浇铸等措施可以提高输出功率) |
Calculation base: - Voltage and current sinusoidal |
