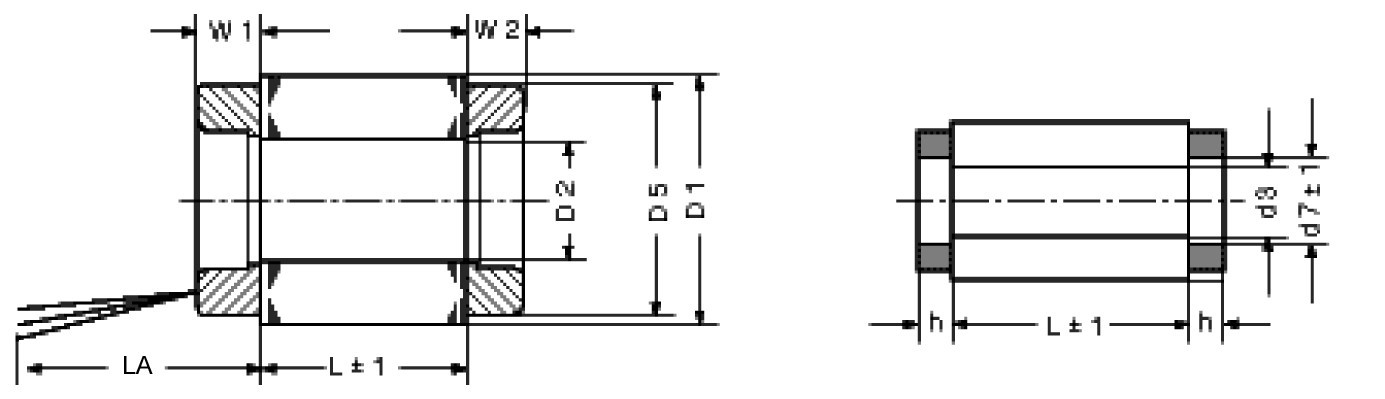

机械尺寸 |
||||||||
Mechanical Dimensions |
||||||||
Type／规格 |
D1 |
D2 |
D5max |
W1max |
W2max |
d3 |
d7 |
h |
EV 65 |
65,0 |
37,5 |
61,0 |
16,0 |
14,0 |
16,0 |
23,5 |
3,8 |
EV 80 |
80,0 |
50,0 |
76,0 |
20,0 |
17,0 |
28,0 |
28,0 |
8,0 |
EV 90 |
90,0 |
55,0 |
85,0 |
23,0 |
19,0 |
33,0 |
35,0 |
7,0 |
EV 106 |
106,5 |
65,0 |
101,0 |
27,0 |
25,0 |
40,0 |
40,5 |
7,5 |
EV 120 |
120,0 |
75,0 |
115,0 |
34,0 |
30,0 |
45,0 |
50,0 |
8,5 |
EV 135 |
135,0 |
85,0 |
130,0 |
35,0 |
32,0 |
52,0 |
52,0 |
8,5 |
EV 140 |
140,0 |
85,0 |
135,0 |
35,0 |
32,0 |
52,0 |
52,0 |
8,5 |
EV 150 |
150,0 |
90,0 |
144,0 |
38,0 |
34,0 |
56,0 |
56,0 |
8,5 |
EV 165 |
165,0 |
103,0 |
159,0 |
42,0 |
37,0 |
60,0 |
71,0 |
6,5 |
EV 170 |
170,0 |
110,0 |
164,0 |
42,0 |
38,0 |
32,0 |
68,0 |
12,0 |
EV 180 |
180,0 |
115,0 |
170,0 |
44,0 |
39,0 |
55,0 |
80,0 |
12,0 |
EV 200 |
200,0 |
130,0 |
194,0 |
47,0 |
43,0 |
85,0 |
88,0 |
14,0 |
EV 240 |
240,0 |
150,0 |
230,0 |
53,0 |
50,0 |
95,0 |
103,0 |
12,0 |
EV 270 |
270,0 |
170,0 |
260,0 |
55,0 |
52,0 |
100,0 |
110,0 |
15,0 |
EV 300 |
300,0 |
190,0 |
290,0 |
58,0 |
55,0 |
110,0 |
115,0 |
12,0 |
注释: 所以尺寸以 mm为单位，其余尺寸另外询问。 LA ＝定子连接线长度 |
Explanation: All dimensions in metric mm, more and |
规格实例 |
|||||||
Examples |
|||||||
规格Type |
长度 | Length |
Pab (kW) |
Pab (kW) |
Pab (kW) |
Pab (kW) |
Pab (kW) |
|
200 Hz |
500 Hz |
1 000 Hz |
1 500 Hz |
2 000 Hz |
|||
6 000 rpm |
15 000 rpm |
30 000 rpm |
45 000 rpm |
60 000 rpm |
|||
EV 65 |
- 30.4 |
0,17 |
0,53 |
1,12 |
1,70 |
2,20 |
|
|
- 45.4 |
0,22 |
0,92 |
2,00 |
2,80 |
3,40 |
|
|
- 60.4 |
0,34 |
1,30 |
2,60 |
4,20 |
5,00 |
|
EV 80 |
- 30.4 |
0,35 |
1,32 |
2,50 |
3,60 |
4,50 |
|
|
- 45.4 |
0,67 |
2,30 |
4,50 |
6,10 |
6,90 |
|
|
- 60.4 |
1,00 |
3,30 |
6,80 |
8,50 |
9,00 |
|
|
- 75.4 |
0,87 |
3,30 |
7,10 |
11,00 |
12,00 |
|
|
- 90.4 |
1,60 |
4,10 |
8,60 |
12,50 |
15,00 |
|
EV 90 |
- 45.4 |
1,40 |
2,80 |
5,60 |
7,50 |
|
|
|
- 60.4 |
1,20 |
4,10 |
9,00 |
11,50 |
|
|
|
- 75.4 |
1,90 |
6,00 |
10,70 |
14,90 |
|
|
|
- 90.4 |
2,00 |
5,80 |
14,00 |
17,80 |
|
|
EV 106 |
- 50.4 |
2,10 |
5,60 |
10,40 |
12,60* |
|
|
|
- 80.4 |
3,80 |
10,00 |
18,00 |
21,20* |
|
|
|
- 100.4 |
4,70 |
13,00 |
21,00 |
26,00* |
|
|
|
- 130.4 |
7,70 |
15,00 |
28,50 |
34,50* |
|
|
|
- 150.4 |
6,20 |
16,00 |
32,00 |
36,00* |
|
|
Type／规格 |
长度| Length |
Pab (kW) |
Pab (kW) |
Pab (kW) |
Pab (kW) |
Pab (kW) |
|
200 Hz |
500 Hz |
1 000 Hz |
1 500 Hz |
2 000 Hz |
|||
6 000 rpm |
15 000 rpm |
30 000 rpm |
45 000 rpm |
60 000 rpm |
|||
EV 120 |
- 50.4 |
3,00 |
7,80 |
13,00* |
|
|
|
|
- 90.4 |
6,10 |
15,70 |
26,00* |
|
|
|
|
- 120.4 |
8,20 |
21,00 |
36,50* |
|
|
|
|
- 150.4 |
9,50 |
24,50 |
43,00* |
|
|
|
EV 135 |
- 50.4 |
4,80 |
12,50 |
24,00 |
|
|
|
|
- 80.4 |
7,90 |
20,10 |
38,20 |
|
|
|
|
- 100.4 |
10,00 |
25,00 |
47,20 |
|
|
|
|
- 130.4 |
12,90 |
32,90 |
62,00 |
|
|
|
|
- 160.4 |
16,30 |
40,90 |
78,00 |
|
|
|
|
- 230.4 |
22,30 |
55,00 |
103,00 |
|
|
|
EV 140 |
- 50.4 |
4,80 |
12,40 |
24,30 |
|
|
|
|
- 100.4 |
10,10 |
25,60 |
50,10 |
|
|
|
|
- 160.4 |
16,80 |
40,00 |
79,30 |
|
|
|
|
- 240.4 |
25,50 |
60,20 |
118,00 |
|
|
|
EV 150 |
- 50.4 |
6,10 |
15,10 |
|
|
|
|
|
- 100.4 |
15,00 |
32,00 |
|
|
|
|
|
- 150.4 |
20,00 |
48,20 |
|
|
|
|
|
- 220.4 |
30,00 |
72,00 |
|
|
|
|
EV 165 |
- 50.4 |
7,90 |
20,00 |
|
|
|
|
|
- 100.4 |
20,00 |
44,00 |
|
|
|
|
|
- 150.4 |
30,00 |
64,00 |
|
|
|
|
|
- 200.4 |
40,00 |
85,00 |
|
|
|
|
*价值较高的材料 |
*more significant material |
||||||
Type／规格 |
长度 | Length |
Pab (kW) |
Pab (kW) |
Pab (kW) |
Pab (kW) |
33 Hz |
100 Hz |
200 Hz |
333 Hz |
||
1 000 rpm |
3 000 rpm |
6 000 rpm |
10 000 rpm |
||
EV 170 |
- 100.4 |
4,00 |
12,00 |
24,00 |
44,00 |
|
- 150.4 |
6,00 |
18,00 |
36,00 |
60,00 |
|
- 200.4 |
8,00 |
24,00 |
48,00 |
80,00 |
EV 180 |
- 100.4 |
5 20 |
14,00 |
27,00 |
45,00 |
|
- 150.4 |
7,50 |
21,00 |
41,00 |
70,00 |
|
- 200.4 |
10,00 |
28,00 |
54,00 |
90,00 |
EV 200 |
- 100.4 |
6,00 |
17,00 |
33,00 |
55,00 |
|
- 200.4 |
12,00 |
34,00 |
66,00 |
110,00 |
|
- 250.4 |
15,00 |
43,00 |
83,00 |
138,00 |
EV 240 |
- 150.4 |
12,00 |
36,00 |
72,00 |
120,00 |
|
- 200.4 |
17,00 |
48,00 |
96,00 |
160,00 |
|
- 300.4 |
24,00 |
72,00 |
144,00 |
240,00 |
EV 270 |
- 150.4 |
16,00 |
54,00 |
108,00 |
181,00 |
|
- 200.4 |
22,00 |
72,00 |
144,00 |
241,00 |
|
- 300.4 |
32,00 |
108,00 |
216,00 |
362,00 |
EV 300 |
- 200.4 |
33,00 |
103,00 |
205,00 |
334,00 |
|
- 250.4 |
42,00 |
129,00 |
257,00 |
418,00 |
|
- 300.4 |
50,00 |
155,00 |
308,00 |
501,00 |
实际计算的依据: - 正弦波形的电压和电流 - 导磁材料的轴心 - 水冷却 (功率值只是参考值，通过线圈浇铸等措施可以提高输出功率) |
Calculation base: - Voltage and current sinusoidal |
