Bestell-Nr. 2000 6000 |
Part No. 2000 6000 |
||
|
|
||
|
|
|
|
应用 |
钻, 铣, 磨, 雕刻机床 |
Applications |
Drilling, Milling, Grinding, Engraving |

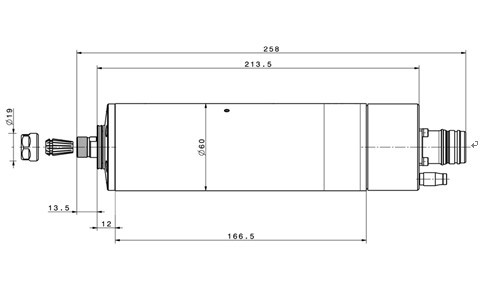

外壳夹装尺寸 |
60 mm |
Clamping diameter |
60 mm |
马达类型 |
3 相异步高速电机 |
Motor system |
3 Phase asynchronous motor |
转速范围 |
3,000 – 24,000 min-1 |
Speed range |
3,000 - 24,000 rpm |
额定电压 |
220 V |
Voltage |
220 V |
电流 |
最大 14 A |
Current |
max. 14 A |
扭矩 |
最大 215 Ncm |
Torque |
max. 215 Ncm |
频率 |
50 - 400 Hz |
Frequency |
50 - 400 Hz |
功率 |
最大 2.000 W |
Output power |
max. 2,000 W |
重量 |
3.5 kg |
Weight |
3.5 kg |
轴承 |
3 x 钢球轴承, 油脂润滑 |
Bearing system |
3 x Steel, lifetime lubrication |
防护等级 |
IP 54/57 |
Protection category |
IP 54/57 |
电机保护 |
PTC - 130 °C |
Motor protection |
PTC - 130°C |
安装位置 |
|
Working position |
|
负载方向 |
轴向 + 径向 |
Load direction |
axial + radial |
锥面跳动 |
通常 1 µm |
Run-out (taper) |
[ 1 µm |
刀具夹持范围 |
Ø 0.5 – 7.0 mm (ER 11) |
Chuck clamping range |
Ø 0.5 - 7.0 mm (ER 11) |
换刀方式 |
1 开口扳手 (SW 13) |
Tool change |
1 open-end wrench (13 mm) |
冷却系统 |
外夹具冷却 |
Cooling system |
Cooling via clamping bracket |
防水防尘措施 |
密封气0.8–1.0 bar(管径Ø 内/外 4/6 mm) |
Protected against dirt |
Sealing air 0.8 - 1.0 bar |
外壳材料 |
不锈钢 |
Housing material |
Stainless steel |
推荐变频器 |
e@syDrive® 4438, TV 4538, EMERSON SKCD200220 |
Inverter recommendation |
e@syDrive® 4438, TV 4538, EMERSON SKCD200220 |
|
不锈钢 |
|
Subject to change without notice |
