料号 1002 3669 |
Part No. 1002 3669 |
|||
应用 |
钻, 铣, 磨, 雕刻机床 |
Applications |
Drilling, Milling, Grinding, Engraving |
|

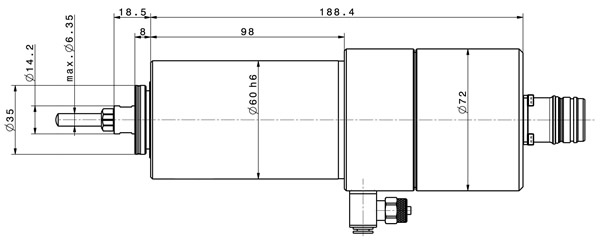

外壳夹装尺寸 |
60 mm |
Clamping diameter |
60 mm |
|
马达类型 |
无刷同步高速电机 |
Motor system |
Brushless DC motor (BLDC) |
|

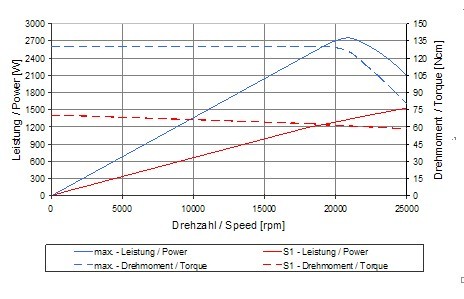

转速范围 |
2,000 – 25,000 min-1 |
Speed range |
2,000 - 25,000 rpm |
|
额定电压 |
230 V |
Voltage |
230 V |
|
电流 |
最大 12 A |
Current |
max. 12 A |
|
扭矩t |
最大 130 Ncm |
Torque |
max. 130 Ncm |
|
频率 |
33 - 417 Hz |
Frequency |
33 - 417 Hz |
|
功率 |
最大 2,800 W |
Output power |
max. 2,800 W |
|
重量 |
3.3 kg |
Weight |
3.3 kg |
|
轴承 |
3 x 钢球轴承, 油脂润滑 |
Bearing system |
3 x Steel, lifetime lubrication |
|
保护等级 |
IP 54 |
Protection category |
IP 54 |
|
电机保护 |
PTC - 100 °C |
Motor protection |
PTC - 100°C |
|
安装位置 |
|
Working position |
|
|
负载方向 |
轴向 + 径向 |
Load direction |
axial + radial |
|
锥面跳动 |
通常 1 µm |
Run-out (taper) |
typ. 1 µm |
|
刀具夹持范围 |
Ø 1.0 – 6.35 mm (包括 1/8 + 1/4") |
Chuck clamping range |
Ø 1.0 - 6.35 mm (incl. 1/8 + 1/4") |
|
换刀方式 |
2 开口扳手 (SW 13 + 10) |
Tool change |
2 open-end wrenches (13 + 10 mm) |
|
冷却系统 |
外夹具冷却 |
Cooling system |
Cooling via clamping bracket |
|
防水防尘措施 |
压缩气 0.5 – 0.8 bar (管径 Ø 内/外4/6 mm) |
Protected against dirt |
Sealing air 0.5 - 0.8 bar (hose Ø inner/outer 4/6 mm) |
|
外壳材料 |
不锈钢 |
Housing material |
Stainless steel |
|
推荐变频器 |
e@syDrive® 4438, TV 4538 |
Inverter recommendation |
e@syDrive® 4438, TV 4538 |
|
|
保留修改权 |
|
Subject to change without notice |
