料号 0675 0530 - Type 4041 |
Part No. 0675 0530 - Type 4041 |
||
|
|
||
料号 2001 2520 - Type 4041 "HY-ESD" |
Part No. 2001 2520 - Type 4041 "HY-ESD" |
||
|
|
||
应用 |
钻, 铣, 磨,雕刻,电路板切割（自动换刀） |
Applications - Type 4041 Type 4041 "HY-ESD" |
Drilling, Milling, Grinding, Engraving PCB routing |

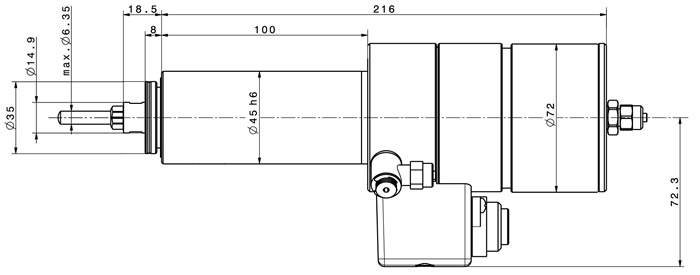

外壳夹装尺寸 |
45 mm |
Clamping diameter |
45 mm |
马达类型 |
3相异步高速电机 |
Motor system |
3 Phase asynchronous motor |
转速范围 |
5,000 – 50,000 min-1 |
Speed range |
5,000 - 50,000 rpm |
额定电压 |
48 V |
Voltage |
48 V |
电流 |
最大13 A |
Current |
max. 13 A |

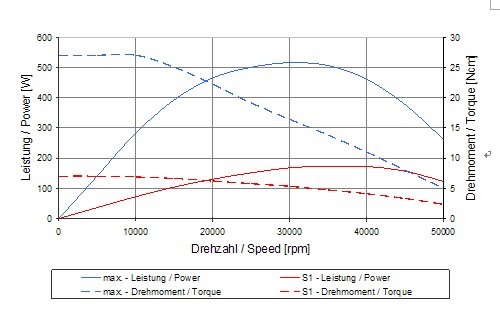

扭矩 |
最大27 Ncm |
Torque |
max. 27 Ncm |
频率 |
83 - 833 Hz |
Frequency |
83 - 833 Hz |
功率 |
最大 500 W |
Output power |
max. 500 W |
重量 |
3.5 kg |
Weight |
3.5 kg |
轴承 |
3 x陶瓷轴承, 油脂润滑 |
Bearing system |
3 x Hybrid, lifetime lubrication |
防护等级 |
IP 54 |
Protection category |
IP 54 |
电机保护 |
PTC - 100 °C |
Motor protection |
PTC - 100°C |
安装位置 |
|
Working position |
|
负载方向 |
径向 + 轴向 |
Load direction |
axial + radial |
锥面跳动 |
通常1 µm |
Run-out (taper) |
typ. 1 µm |
刀具夹持范围 |
Ø 1.0 – 6.35 mm (包括 1/8 + 1/4") |
Chuck clamping range |
Ø 1.0 - 6.35 mm (incl. 1/8 + 1/4") |
换刀方式 |
气动 7 - 8 bar 和气动5- 6 bar |
Tool change - Type 4041 Type 4041 "HY-ESD" |
pneumatical 7 - 8 bar |
冷却系统 |
外夹具冷却 |
Cooling system |
Cooling via clamping bracket |
防水防尘措施 |
密封气0.5–0.8 bar(管径Ø 内/外 4/6 mm) |
Protected against dirt |
Sealing air 0.5 - 0.8 bar |
外壳材料 |
不锈钢 |
Housing material |
Stainless steel |
推荐变频器 |
e@syDrive® 4426, TV 4506 |
Inverter recommendation |
e@syDrive® 4426, TV 4506 |
特性. 4041 "HY-ESD" |
导静电 |
Highlights 4041 "HY-ESD" |
Leakage of electrostatic charge |
|
保留修改权 |
|
Subject to change without notice |
