料号 1005 0275 |
Part No. 1005 0275 |
||
|
|
||
应用 |
（钻, 铣, 磨, 雕刻）机床 |
Applications |
Drilling, Milling, Grinding, Engraving |

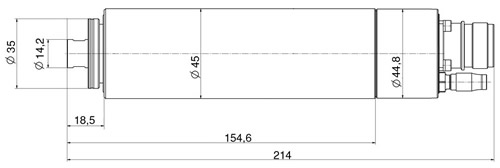

外壳夹装尺寸 |
45 mm |
Clamping diameter |
45 mm |
马达类型 |
无刷同步高速电机 |
Motor system |
Brushless DC motor (BLDC) |

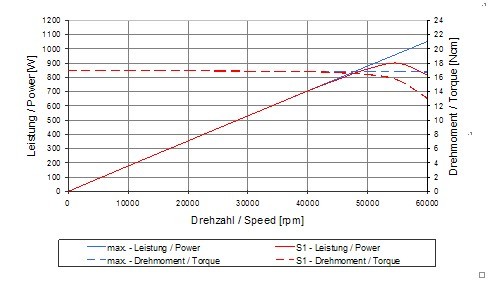

转速范围 |
5,000 – 50,000 / 60,000* min-1 |
Speed range |
5,000 - 50,000 / 60,000* rpm |
额定电压 |
45 V |
Voltage |
45 V |
电流 |
最大 16 A |
Current |
max. 16 A |
扭矩t |
最大 17 Ncm |
Torque |
max. 17 Ncm |
频率 |
83 - 833 / 1,000* Hz |
Frequency |
83 - 833 / 1,000* Hz |
功率 |
最大 1,050 W |
Output power |
max. 1,050 W |
重量 |
1,7 kg |
Weight |
1.7 kg |
轴承 |
3 x 陶瓷轴承, 油脂润滑 |
Bearing system |
3 x Hybrid, lifetime lubrication |
保护等级 |
IP 54 |
Protection category |
IP 54 |
电机保护 |
PTC - 100 °C |
Motor protection |
PTC - 100°C |
安装位置 |
|
Working position |
|
负载方向 |
轴向 + 径向 |
Load direction |
axial + radial |
锥面跳动 |
通常 1 µm |
Run-out (taper) |
typ. 1 µm |
刀具夹持范围 |
Ø 1.0 – 6.35 mm (incl. 1/8 + 1/4") |
Chuck clamping range |
Ø 1.0 - 6.35 mm (incl. 1/8 + 1/4") |
换刀方式 |
2 开口扳手 (SW 13 + 10) |
Tool change |
2 open-end wrenches (13 + 10 mm) |
冷却系统 |
外夹具冷却 |
Cooling system |
Cooling via clamping bracket |
防水防尘措施 |
压缩气 0.5 – 0.8 bar (外管径 Ø4 mm) |
Protected against dirt |
Sealing air 0.5 - 0.8 bar |
外壳材料 |
不锈钢 |
Housing material |
Stainless steel |
推荐变频器 |
e@syDrive® 4426, TV 4506** |
Inverter recommendation |
e@syDrive® 4426, TV 4506** |
*短时间运行 **输出功率有所降低 |
保留修改权 |
*short term **reduced output power |
Subject to change without notice |
