料号 0674 2160 |
Part No. 0674 2160 |
|||
|
|
|||
应用 |
钻, 铣, 磨, 雕刻机床 |
Applications |
Drilling, Milling, Grinding, Engraving |
|

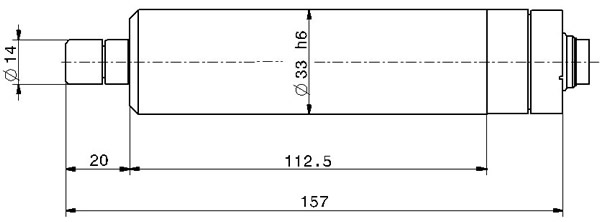

外壳夹装尺寸 |
33 mm |
Clamping diameter |
33 mm |
|
马达类型+
|
3相异步高速电机 |
Motor system |
3 Phase asynchronous motor |
|
转速范围 |
5,000 - 60,000 min-1 |
Speed range |
5,000 - 60,000 rpm |
|
额定电压 |
30 V |
Voltage |
30 V |
|
电流 |
最大 8 A |
Current |
max. 8 A |
|

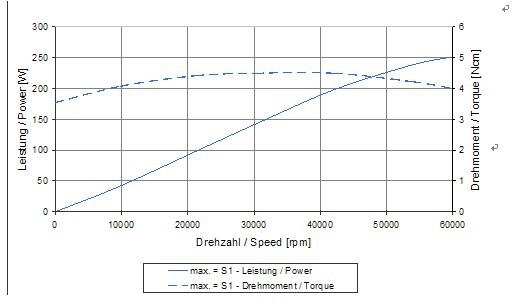

扭矩 |
最大 4.5 Ncm |
Torque |
max. 4.5 Ncm |
|
频率 |
83 – 1,000 Hz |
Frequency |
83 - 1,000 Hz |
|
功率 |
最大. 250 W |
Output power |
max. 250 W |
|
重量 |
0.7 kg |
Weight |
0.7 kg |
|
轴承 |
2x 陶瓷轴承, 1x钢球轴承, 油脂润滑 |
Bearing system |
2x Hybrid, 1x Steel, lifetime lubricat. |
|
防护等级 |
IP 20 |
Protection category |
IP 20 |
|
电机保护 |
- |
Motor protection |
- |
|
安装位置 |
|
Working position |
|
|
负载方向 |
轴向 + 径向 |
Load direction |
axial + radial |
|
锥面跳动 |
一般情况 1 µm |
Run-out (taper) |
typ. 1 µm |
|
刀具夹持范围 |
Ø 0.5 – 4.0 mm (包括 1/8") |
Chuck clamping range |
Ø 0.5 - 4.0 mm (incl. 1/8") |
|
换刀方式 |
2扳手 (SW 12) |
Tool change |
2 open-end wrenches (12 mm) |
|
冷却系统 |
内置风扇*及外夹具冷却 |
Cooling system |
Self-ventilation fan* Cooling via clamping bracket |
|
防水防尘措施 |
无 |
Protected against dirt |
No |
|
外壳材料 |
不锈钢 |
Housing material |
Stainless steel |
|
推荐变频器 |
e@syDrive® 4424*, 4425 |
Inverter recommendation |
e@syDrive® 4424*, 4425 |
|
*输出功率有所降低 |
保留修改权 |
*reduced output power |
Subject to change without notice |
|
