料号. 1002 4102 |
Part No. 1002 4102 |
||
Anwendungen |
Bohren, Fräsen, Schleifen, Gravieren |
||
应用 |
钻, 铣, 磨, 雕刻机床 |
Applications |
Drilling, Milling, Grinding, Engraving |

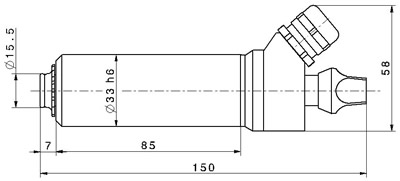

外壳夹装尺寸 |
33 mm |
Clamping diameter |
33 mm |
马达类型 |
无刷同步高速电机 |
Motor system |
Brushless DC motor (BLDC) |

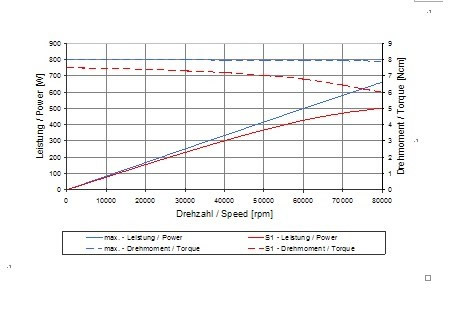

转速范围 |
2,000 – 80,000 min-1 |
Speed range |
2,000 - 80,000 rpm |
额定电压 |
30 V |
Voltage |
30 V |
电流 |
最大 16 A |
Current |
max. 16 A |
扭矩t |
最大 8 Ncm |
Torque |
max. 8 Ncm |
频率 |
33 – 1,333 Hz |
Frequency |
33 - 1,333 Hz |
功率 |
最大 670 W |
Output power |
max. 670 W |
重量 |
0.7 kg |
Weight |
0.7 kg |
轴承 |
3 x 陶瓷轴承, 油脂润滑 |
Bearing system |
3 x Hybrid, lifetime lubrication |
保护等级 |
IP 40 |
Protection category |
IP 40 |
电机保护 |
- |
Motor protection |
- |
安装位置 |
|
Working position |
|
负载方向 |
轴向 + 径向 |
Load direction |
axial + radial |
锥面跳动 |
通常 1 µm |
Run-out (taper) |
typ. 1 µm |
刀具夹持范围 |
Ø 0.3 – 4.0 mm (incl. 1/8") |
Chuck clamping range |
Ø 0.3 - 4.0 mm (incl. 1/8") |
换刀方式 |
旋钮 |
Tool change |
Clamping knob |
冷却系统 |
外夹具冷却 |
Cooling system |
Cooling via clamping bracket |
防水防尘措施 |
无 |
Protected against dirt |
no |
外壳材料 |
不锈钢l |
Housing material |
Stainless steel |
连接电缆 |
2.0 m |
Connecting cable |
2.0 m |
推荐变频器 |
e@syDrive® 4425*, 4426 |
Inverter recommendation |
e@syDrive® 4425*, 4426 |
*输出功率有所降低 |
保留修改权
|
*reduced output power |
Subject to change without notice |
