料号 1001 2437 – 型号 4015 DC |
Part No. 1001 2437 - Type 4015 DC |
||
|
|
||
料号 2000 1651 – 型号 4015 DC-M |
Part No. 2000 1651 - Type 4015 DC-M |
||
|
|
||
应用 |
钻, 铣, 磨, 雕刻 |
Applications |
Drilling, Milling, Grinding, Engraving |

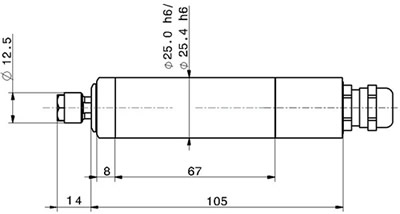

外壳夹装尺寸 |
25.4 mm : 型号 4015 DC 25.0 mm : 型号 4015 DC-M |
Clamping diameter |
25.4 mm : Type 4015 DC 25.0 mm : Type 4015 DC-M |
马达类型 |
无刷同步高速电机 |
Motor system |
Brushless DC motor (BLDC) |
转速范围 |
5,000 – 80,000 / 100,000* min-1 |
Speed range |
5,000 - 80,000 / 100,000* rpm |
额定电压 |
32 V |
Voltage |
32 V |
电流 |
最大 8 A |
Current |
max. 8 A |

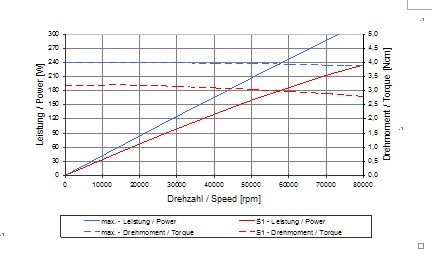

扭矩 |
最大 4 Ncm |
Torque |
max. 4 Ncm |
频率 |
83 – 1,333 / 1,666* Hz |
Frequency |
83 - 1,333 / 1,666* Hz |
功率 |
最大 300 W |
Output power |
max. 300 W |
重量 |
0.4 kg |
Weight |
0.4 kg |
轴承 |
3 x 陶瓷轴承, 油脂润滑 |
Bearing system |
3 x Hybrid, lifetime lubrication |
保护等级 |
IP 54 |
Protection category |
IP 54 |
电机保户 |
- |
Motor protection |
- |
安装位置 |
|
Working position |
|
负载方向 |
轴向 + 径向 |
Load direction |
axial + radial |
锥面跳动 |
通常 1 µm |
Run-out (taper) |
typ 1 µm |
刀具夹持范围 |
Ø 0.5 – 4.0 mm (包括1/8") |
Chuck clamping range |
Ø 0.5 - 4.0 mm (incl. 1/8") |
换刀方式l |
2 开口扳手 (SW 11 + 8) |
Tool change |
2 open-end wrenches (11 + 8 mm) |
冷却系统 |
外夹具冷却 |
Cooling system |
Cooling via clamping bracket |
防尘防水措施 |
压缩气0,5 - 0,8 bar(管径 Ø 内/外 2.5/4 mm) |
Protected against dirt |
Sealing air 0.5 - 0.8 bar |
外壳材料 |
不锈钢 |
Housing material |
Stainless steel |
连接线长度 |
2.0 m |
Connecting cable |
2.0 m |
推荐变频器 |
e@syDrive® 4424**, 4425 |
Inverter recommendation |
e@syDrive® 4424**, 4425 |
*短时间 **输出功率有所降低 |
保留修改权利 |
*short term **reduced output power |
Subject to change without notice |
